2000kg vertical balancing machine-1

Vertical balancing machine

Home >  Products >  Vertical balancing machine

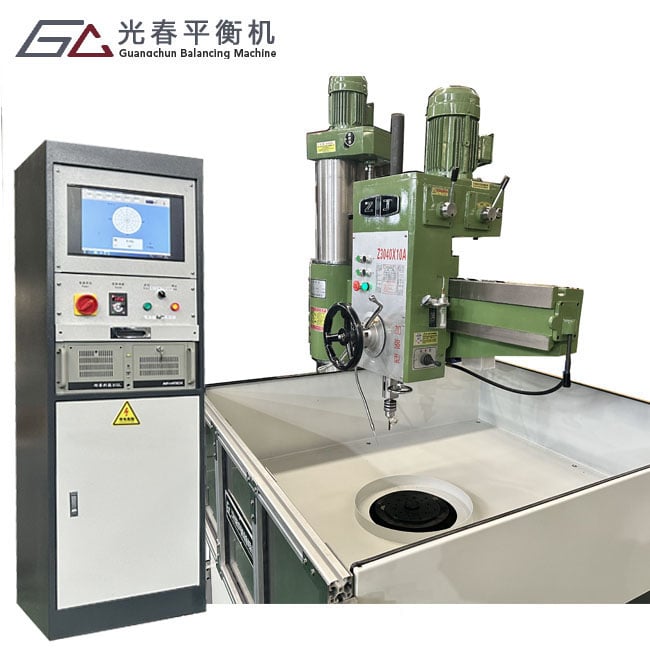

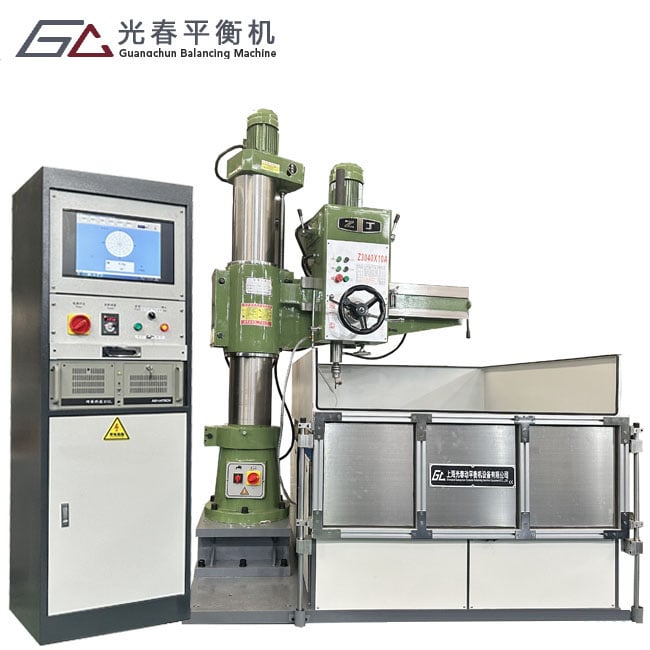

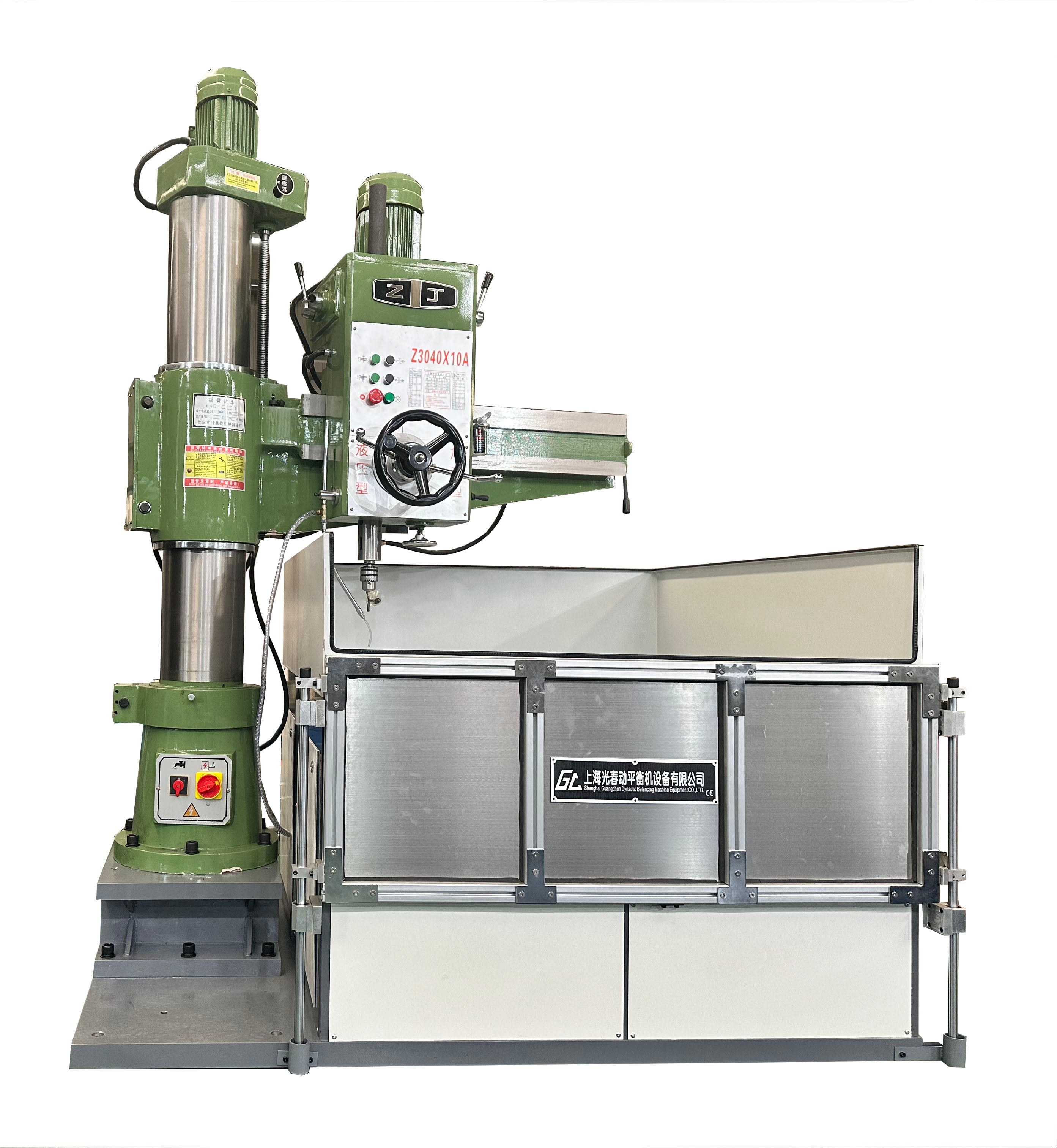

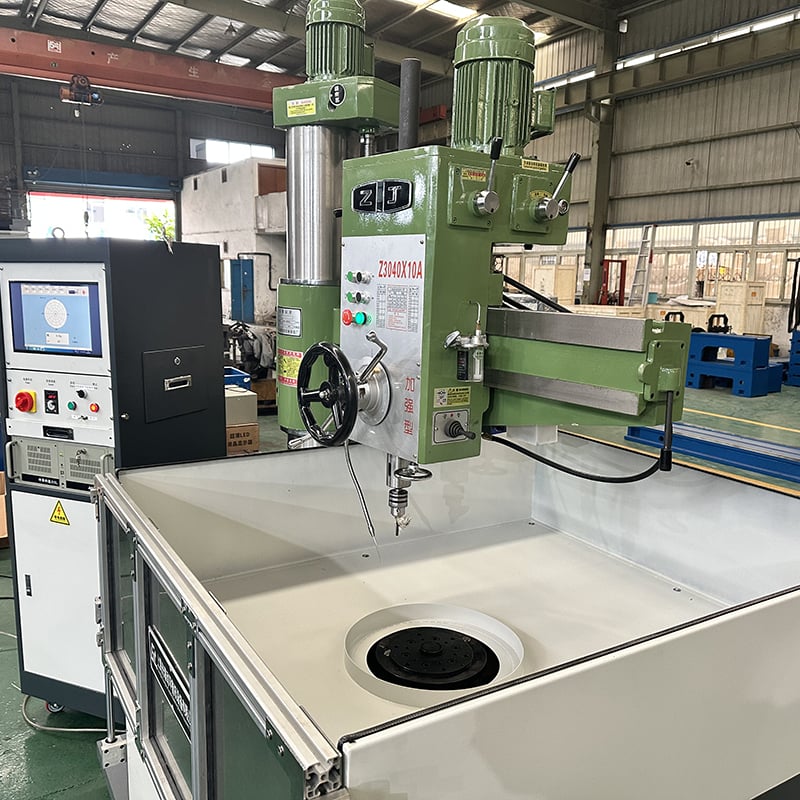

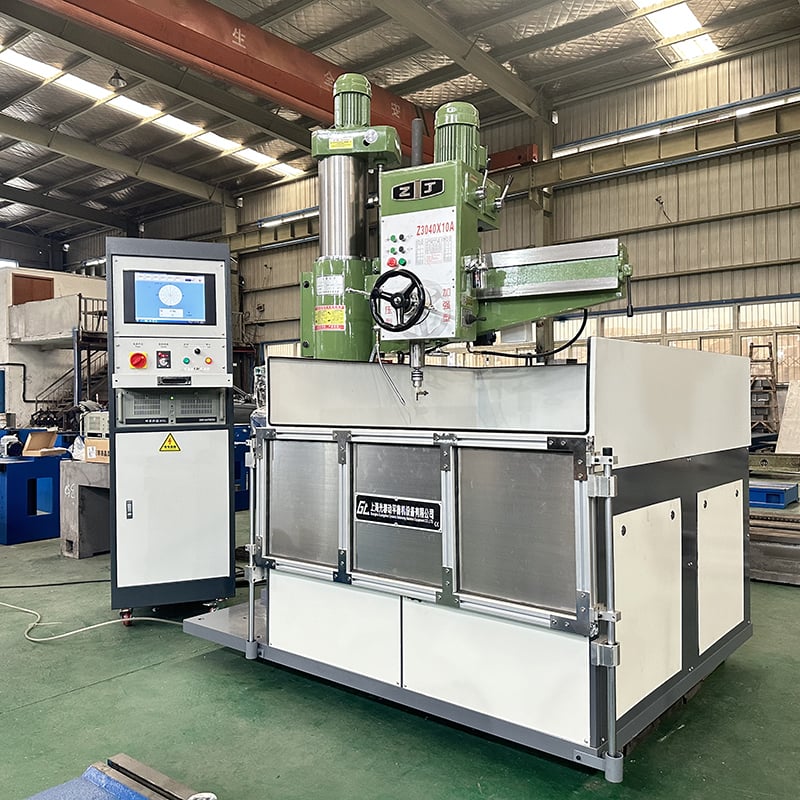

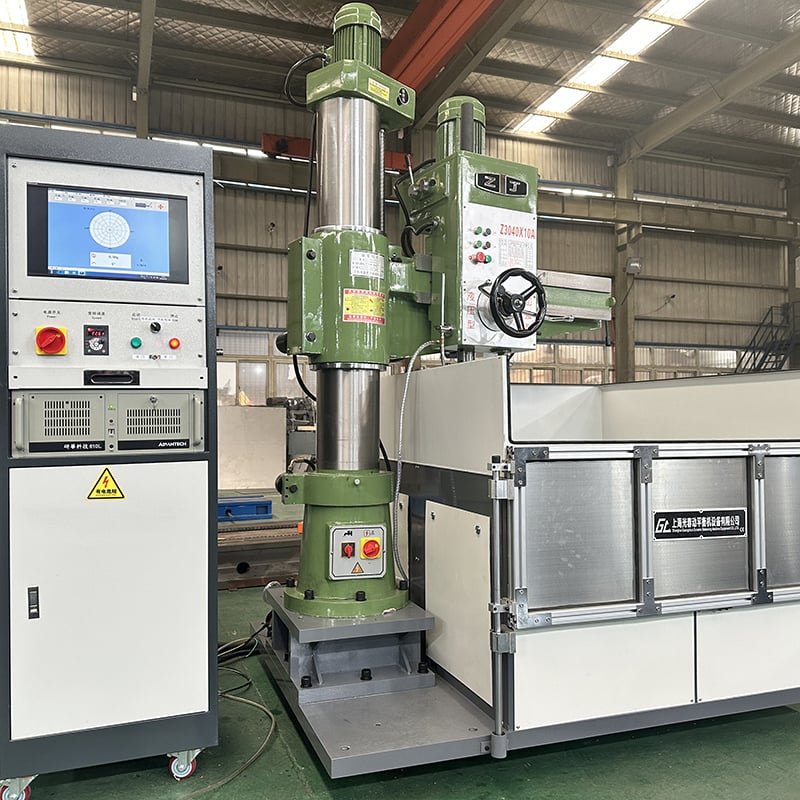

1000/2000Kg Vertical balancing machine

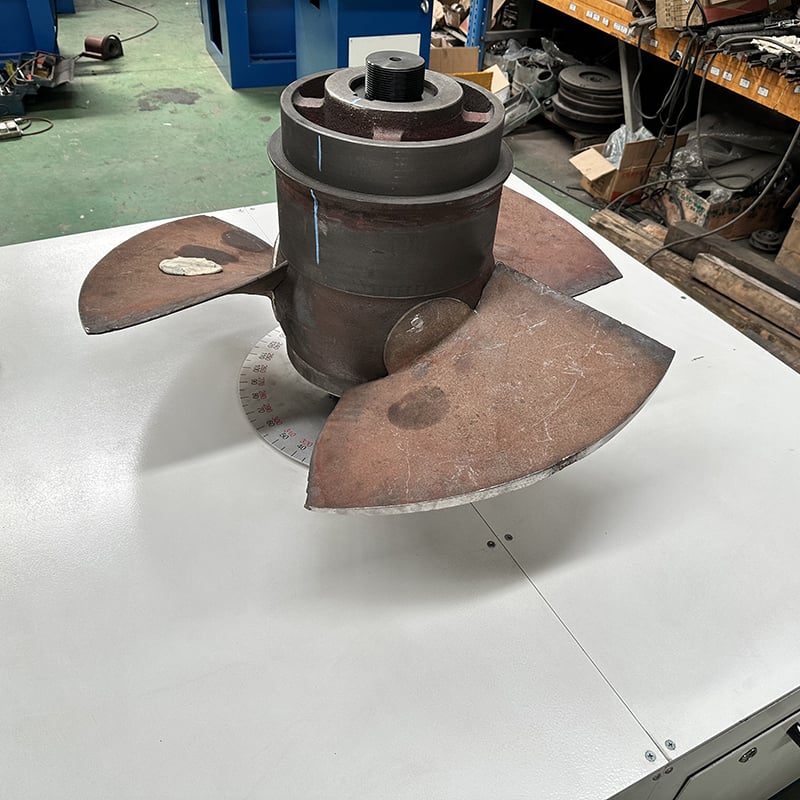

Mainly used in fan blade, water pump impeller, flywheel, grinding wheel, diamond saw blade, chuck, brake, etc. for balance test, according to the customer's request to add vertical de-weighting drilling machine.

  • Technical Parameter
  • Video
  • Inquiry
Technical Parameter

Specification

YLD-1000

YLD-2000

Max Weight of Workpiece (kg)

1000

2000

Max Diameter of Workpiece(mm)

φ1200

(No safety cover)

φ1500

(No safety cover)

Work piece height(mm)

350

450

Spindle speed(r/min)

Variable frequency stepless

Speed regulation

Variable frequency stepless

Speed regulation

Motor Power(kw)

7.5

11

Min Achievable Residual Specific Unbalance (emar)

≤1g.mm/kg

≤1g.mm/kg

Unbalance reduction ratio URR (%)

≥90%

≥90%
